What The 'Power Divider' Switch In A Semi Truck Cab Actually Does To Both Drive Axles

Understanding the concept of a power divider is easy if you know how a differential works. In principle, a power divider, also called the inter-axle differential, is very similar to a locking center differential that you'd find in a dedicated 4x4. But instead of splitting power between the front and rear axles of an SUV, a power divider allows the two rear axles of a tandem-axle semi to operate independently of one another. In other words, it distributes power between the forward axle and the rearmost axle of the semi. When locked, it forces both drive axles to turn together for improved traction in slippery conditions. You'll also find these in tri-drives, although the arrangement is a bit more complex because power is sent across three driven rear axles.

In a trucking context, this power divider is particularly useful when navigating snow or ice, or when moving freight from docks or construction sites where the terrain can be muddy, gravelly, or uneven. Depending on the truck's drivetrain design, you may find additional locking diffs for each driven axle (cross locks) on top of the power divider to deliver the best possible traction.

As you can probably tell, locking all these diffs can make it dramatically more difficult to turn and puts more stress on the drivetrain, so it's advised that you engage them only when necessary – a power divider is more of a preventative measure and is best utilized before the truck has lost traction.

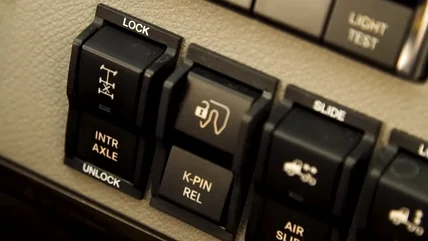

Before you go ahead and press or toggle the inter-axle diff/power divider button, the specific design of which can vary across brands, make sure the truck comes to a complete stop or is traveling below 25 mph and in a straight line.

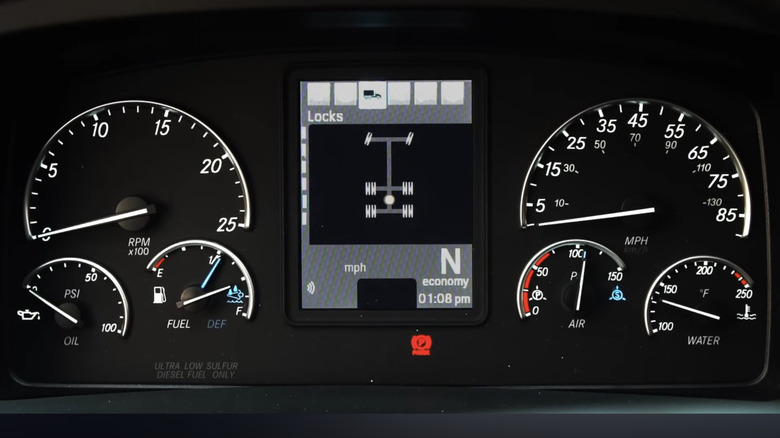

If you're used to locking and unlocking manual differentials on a traditional 4x4, the process should be familiar. As you may know, it takes a moment for the differential to be fully engaged, and if the truck is in motion, make sure to lift off the accelerator before flipping the switch. Whether your vehicle has a mechanical or electronic differential, one thing you don't want to do is engage the power divider when the wheels are spinning. Depending on the dash layout/design, you can tell that the power divider is locked when the light on the switch illuminates or an alert on the instrument cluster pops up. Use smooth throttle inputs and keep the speed below 25 mph as you traverse the low-traction surface to avoid damaging the power divider. Follow the same process to disengage the system: slow down, lift off, toggle the switch, and get back on the throttle.

While the principle is generally the same, the specifics of the system can vary across marques, so it's best that you follow the manufacturer's instructions or have someone from the dealership walk you through the setup if you aren't confident with the locking and unlocking process.
