Chevy LT1 V8s: A Comparison Of Three Small Blocks

General Motors either has a naming problem or a deep sentimental attachment to the name "LT1". If you walk into a Chevrolet dealership today and ask for an LT1, you are looking at a 455-horsepower direct-injected technological marvel. If you did the same in 1994, you got a reverse-cooled mashup of old school and LS-era V8. Go back to 1970, and you are staring at a solid-lifter cam, high-compression engine that defined the peak of the small-block era and one of the most powerful small-block engines ever made. GM loves to recycle engine codes, which is a nightmare at the parts counter but delivers a fascinating timeline for enthusiasts.

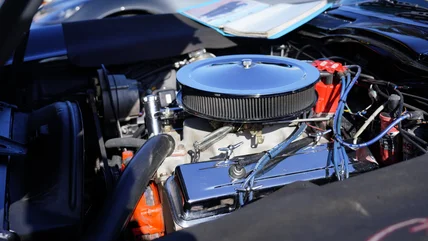

In 1970, GM launched the first LT1. The original LT-1 (yes, the name had a hyphen) was a 350-cubic-inch V8 that came in the midst of the burgeoning smog era of tame engines, yet was anything but docile. In the Corvette, the LT-1 was rated at a heady 370 horsepower, while in the Camaro Z28, the engine produced 360 horsepower. The 1970 LT-1 is hailed as the "Holy Grail" of small-block engines, as it was the last unrestricted high-performance engine of its kind.

Packing 11.0:1 compression, a solid-lifter camshaft, a high-rise aluminium intake, and a massive 780-cfm Holley four-barrel carburetor, the LT-1 rewarded you with a mechanical symphony and high horsepower. It effortlessly revved to 6,500 RPM, inconceivable for a pushrod V8 of its time. Sadly, by 1971, GM slashed engine compression ratios across the board to prepare for unleaded fuel, and the LT-1's output dropped to 330 horsepower and 255 HP (Net) in 1972 before being discontinued. The LT-1 was a flash of mechanical brilliance, a motor that set the standard for what a small-displacement V8 was capable of.

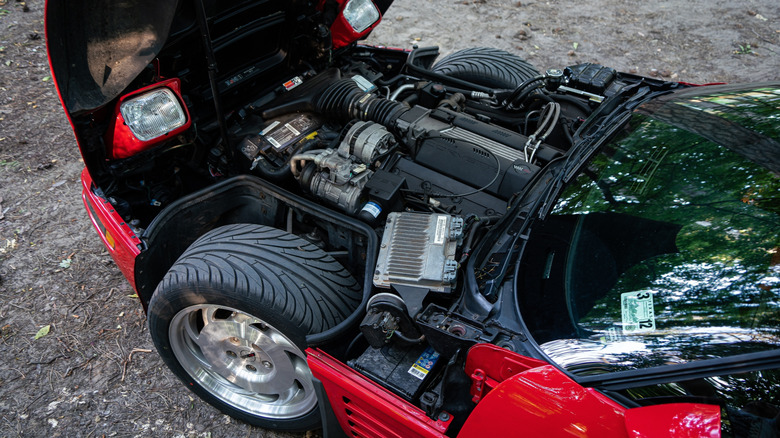

After two decades of the "Corporate V8" era, Chevrolet decided to resurrect the LT1 nameplate for its C4 Corvette in 1992. Chevy dropped the hyphen and thus came the Gen II "LT1". Unlike the Gen I LT-1, which was all about mechanical brute force, the second-gen LT-1 was about thermal efficiency and going digital.

The most talked-about feature of the Corvette C4, besides its Doug Nash 4+3 manual transmission, was the the Gen II LT1's cool reverse-flow cooling system. With traditional V8s, the coolant flows through the cylinder block first and makes its way to the heads. Chevy turned this around with the LT1, sending coolant to the heads first. This method allowed the heads to run cool by preventing hotspots in the combustion chamber, reducing knocking, and allowing the engine to run a higher 10.5:1 compression ratio. It was a technological leap that allowed the 300-horsepower LT1 to outperform its predecessor, the L98.

The 90s LT1 did have its controversies, in the form of the "Optispark". It was a high-resolution optical distributor that offered incredibly precise ignition timing. The problem was that it was mounted directly behind the water pump. That in itself would not have been an issue except that the Optispark was very sensitive to moisture. A leaking water pump or a splash from a puddle was enough to ruin the electronics and transform the smooth motor into a misfiring beast. Despite the Optispark's reputation, the Gen II LT1 was considered the engine that saved the American V8. This one engine powered several legendary muscle cars all the way until 1997, cars such as the Chevrolet Impala SS, Camaro Z28, and the Pontiac Firebird Trans Am.

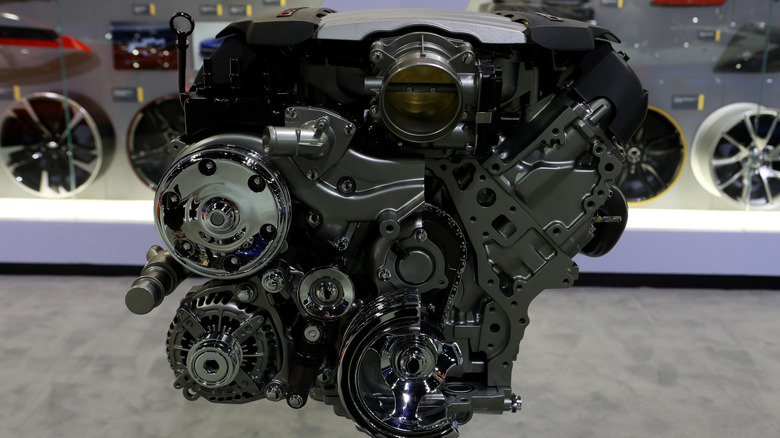

When the fifth-gen small-block came in the 2014 Corvette, GM reached for the LT1 nameplate for the third time. While this engine might look like an LS3 with a different name, there are plenty of differences between the LS and LT motor. The LT1 is an amalgamation of 60 years of Chevy V8 heritage and 21st-century engine-building processes, and its defining characteristic is direct injection. By spraying fuel directly into the combustion chamber at pressures up to 2,175 PSI, the new generation Chevy LT1 achieves an impressive 11.5:1 compression ratio. Combined with variable valve timing (VVT) and active fuel management (cylinder deactivation), the modern LT1 produced 460 horsepower and 465 pound-feet, while still returning close to 29 miles per gallon on the highway in a Corvette.

The LT1 pushes the boundaries of cam-in-block design. It is compact, lightweight, and incredibly power-dense. While the 70s LT-1 was a temperamental beast, and the 90s LT1 was a high-tech experiment, the modern LT1 is the all-around athlete. It is reliable enough to be a daily driver, but potent enough to shine under the hood of a high-performance sports car.

Comparing the three engines is a lesson in evolution. The 1970 LT-1 was all about pushing the limits of air flow, whereas the 1992 LT1 was about pushing the limits of heat management, and the current LT1 is designed to push the limits of combustion efficiency. GM might not be proficient in naming things, but as long as they keep building engines this good, I think we can give them a pass. The only thing you need to worry about is making sure you are buying parts for the right engine.
