Here's What Piston Skirts Are Actually Designed To Do

It's easy to assume a piston skirt is just extra material that's left to act to guide the piston as it moves through the bore. But it actually performs a much more important task, which is to manage forces that, if not taken care of, could have adverse effects on the ring seal and stability. The combustion pressure and rod angle combine to constantly push a piston sideways as it moves through the four-stroke cycle.

During the power stroke in particular, the piston is pushed into the cylinder wall on the major thrust side by gas pressure and mechanical leverage. This is when the load is at its highest degree. In the absence of a skirt, the only remaining contact point would be the ring pack, and the piston would rock from side to side. This would cause piston slap, which you should definitely be worrying about, and also cause the seal to break down in almost no time.

What a skirt does is it distributes the side load over a larger surface area, and creates two contact zones that keep the piston stable as it moves inside the cylinder. Just as important, the skirt must do all of this while creating as little friction as possible.

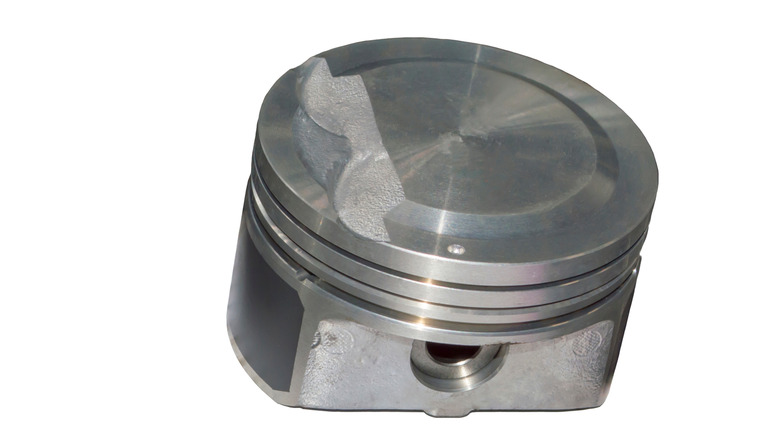

Although a piston skirt appears cylindrical, it is deliberately machined with ovality and a barrel profile. What these shapes do is compensate for the uneven expansion of the piston (which is also why piston ring endgaps matter more than you think). The lower skirt does not heat up as much as the crown and ring belt, where most of the combustion heat accumulates. Simultaneously, some parts of the piston are stiffened by the pin bosses and internal ribs, while others stay more flexible. The piston deforms once the crown is pushed down by the gas pressure, and the skirt is splayed outward in a non-uniform manner.

To address vertical behaviour, barrel contouring is used. A point is calculated below the ring pack where the skirt is kept largest, and there is a gradual taper both above and below this point. What this does is define a controlled contact patch to stabilize the piston, while keeping most of the skirt away from the bore. Horizontal loading, on the other hand, is taken care of by the ovality. To make sure the material is concentrated where the side loads are highest, the skirt is kept wider across the thrust faces and narrower along the pin axis.

Early pistons relied on full round skirts to survive heavy loading, but the added mass and friction limited engine speed and efficiency. As engines evolved toward higher rpm and shorter strokes, skirt designs changed with them. Slipper skirts removed unnecessary material while retaining enough surface area to control thrust loads. This reduced reciprocating weight and allowed pistons to clear crank counterweights in compact engine designs.

Further gains came from refining how the remaining skirt material was used. Asymmetrical skirts recognize that the major thrust side carries far more load than the minor side. By keeping a robust, carefully shaped skirt on the major thrust face and reducing material on the minor side, designers cut friction and weight without sacrificing stability. Balance is preserved through pin offset and lighter wrist pins, not by symmetry alone. Coatings add another layer of control. Skirt coatings are meant to protect against cold starts and brief contact events, which could, in turn, cause cylinder wall scoring.
